You are working for a company that wants to separate its network of 100 workstations into two separate subnets. Right now, they have a single router (A) that connects their internal network to the Internet. They have purchased a second router (B), which will serve as an internal router. Approximately half of their workstations will connect to the internal (LAN) port on Router A, and the other half will connect to the internal (LAN) port on Router B.

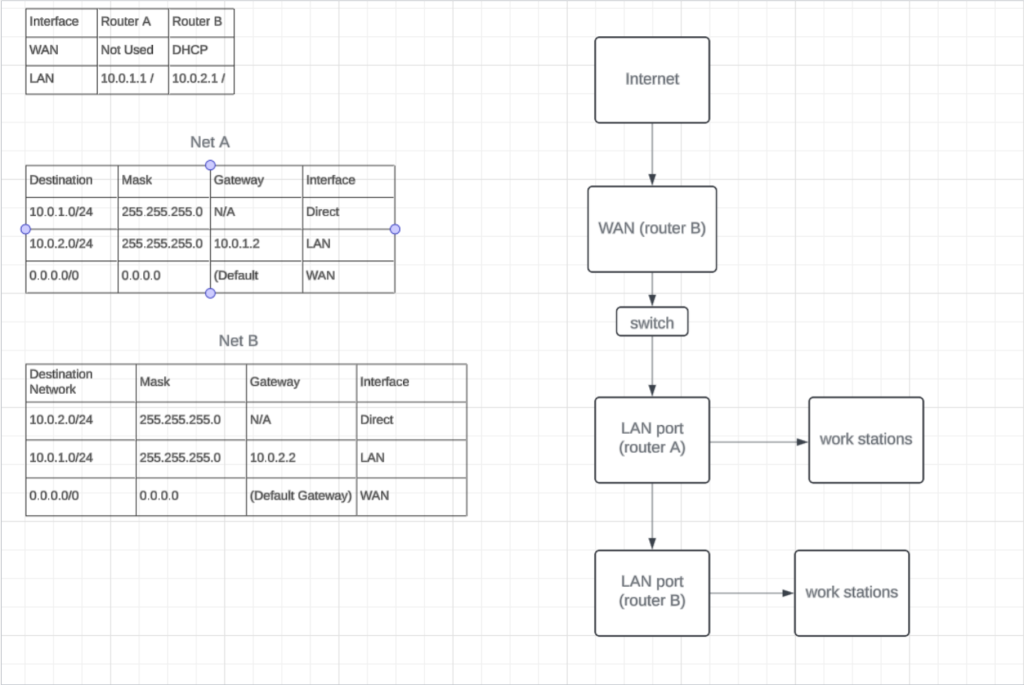

Configure Router A so that a machine attached to an internal (LAN) port on Router A can connect to another machine connected to the internal (LAN) port on Router B. The WAN port of Router B and the LAN port of Router A will connect to the same switch. Use the subnet part 10.0.1.x for the subnet connected to LAN on Router A, and the subnet part 10.0.2.x for the subnet connected to LAN on Router B. Submit: 1) a diagram of the network that you have formed, 2) the IP address and subnet mask configuration of each port on Routers A and B, and 3) the routing table of Routers A and B.

Submission:
